Tips


NAVIGATOR CUE TIPS
各コンセプトと性能

弊社では現在、
Automatic、Black、Alphaに加えて今回Blue ImpactシリーズでラインナップにSIGMAΣがプレイ用TIPとして加わります。
Automatic/スタンダードタイプ
Black/スタンダードプラスタイプ
Alpha/ハイブリッドタイプ

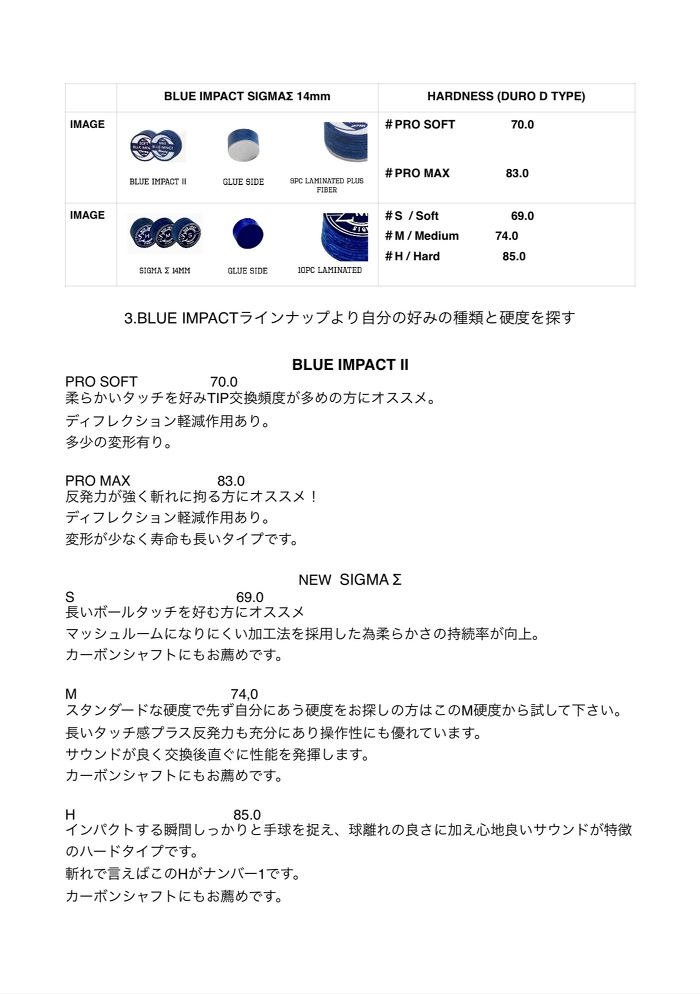

Blue impact/ソリッドシャフトorカーボンシャフト

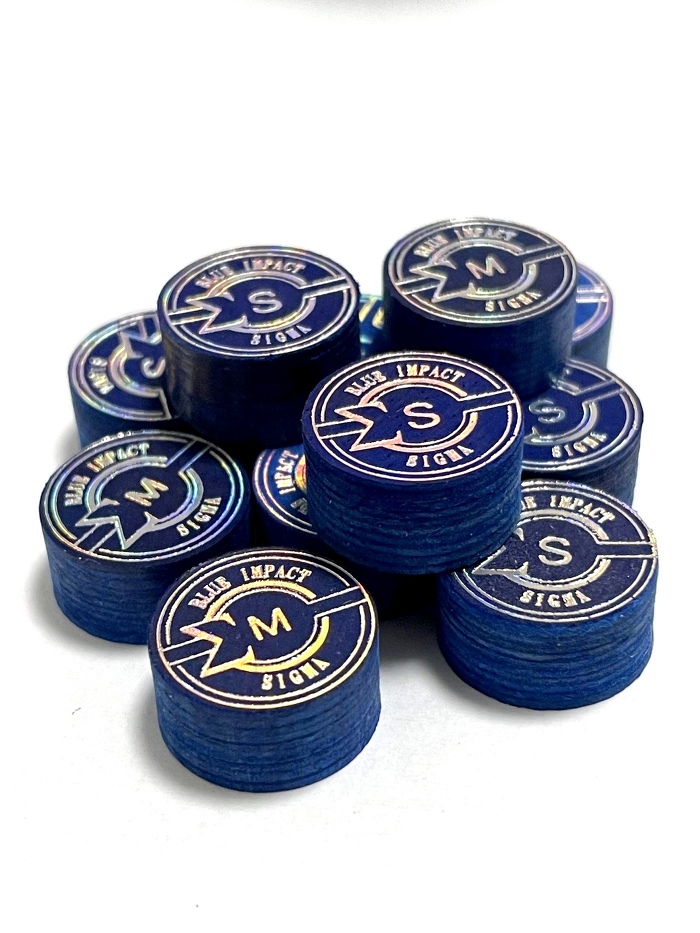

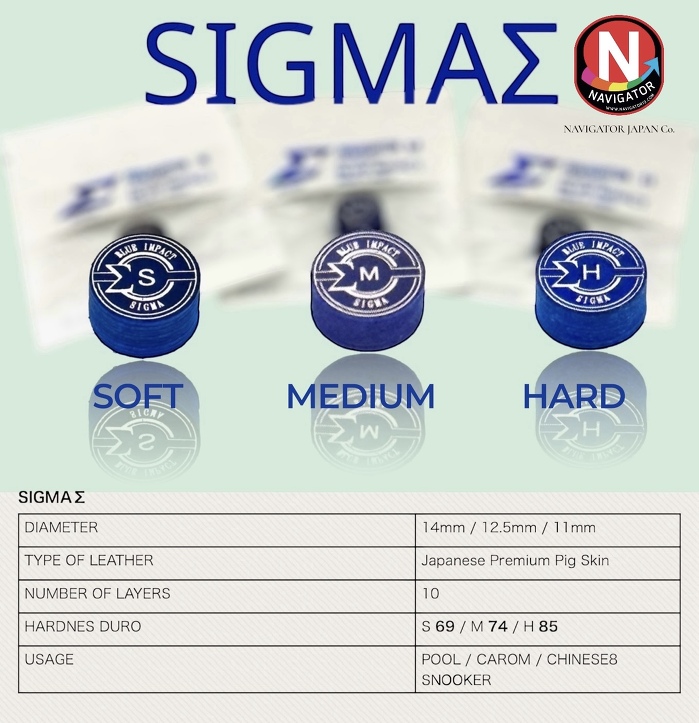

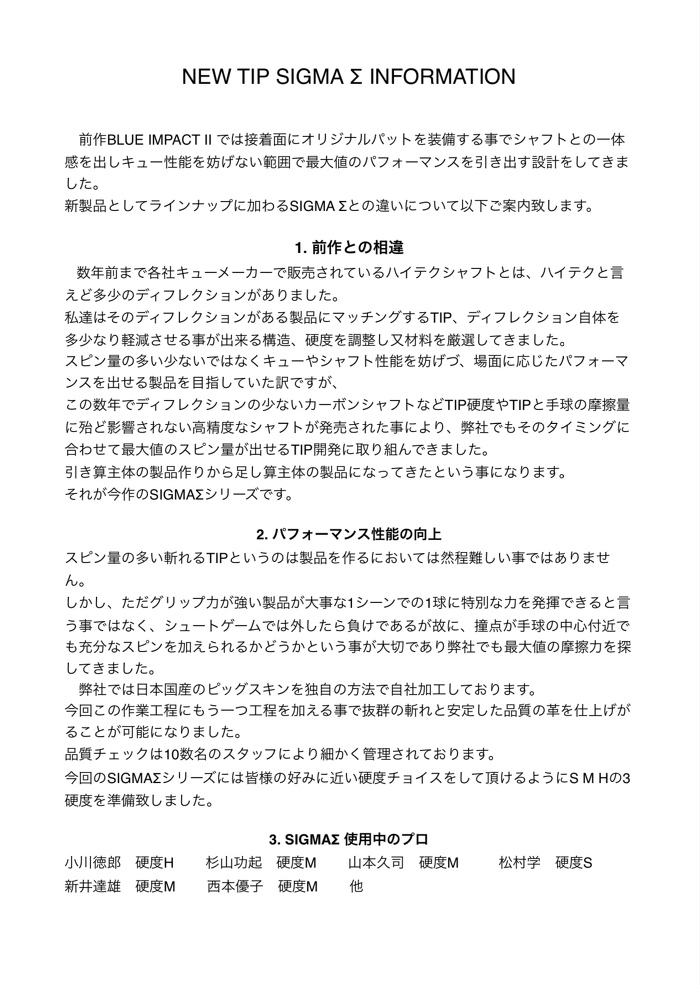

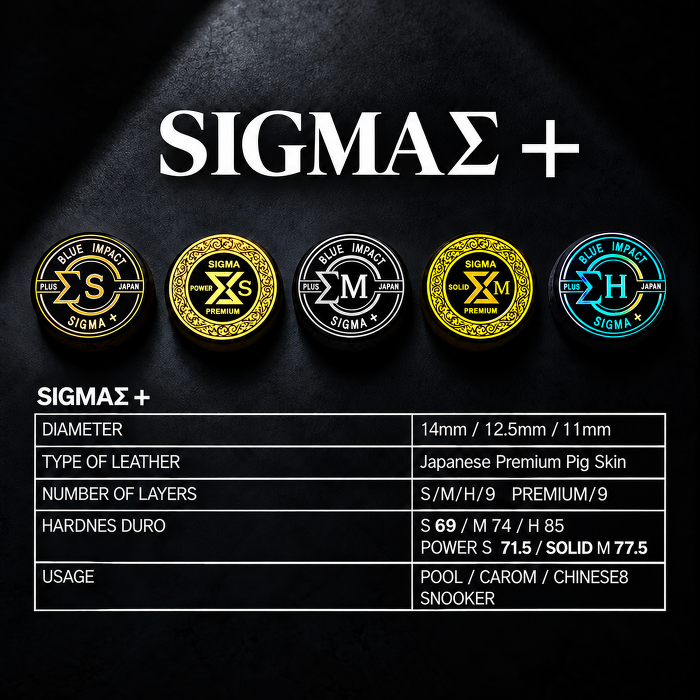

New SIGMAΣ/カーボンシャフトorハイテク高性能シャフト

ジャンプ&ブレイク用としては
Break Impactを販売してます。
革と樹脂の中間に位置する特殊素材
でチョーク乗りの良い反発力の強い最高級TIPとして世界中の多くのプレイヤーに愛用されています。

We are now making & selling 6 types of tips for play cues.
They are Automatic, Black, Alpha, and Blue impact.

Automatic / standard type
Black / standard plus type
Alpha / Hybrid type
Blue Impact / for solid , carbon shafts usage

We are also making jump & break tips.

New Products

NEW TIPS

NEW TIPS

NEW TIPS

NEW TIPS

ALPHA / BLUE IMPACT

NEW TIPS

NAVIGATOR 拡大表示

NEW TIPS 側面

Navigator Alpha
キュー性能をコントロール!
硬度
☆PRO SOFT
☆PRO MAX

『安定』に拘ったプレミアムシリーズ
◉PRO SOFT/幅広い柔軟性と持続性
◉PRO MAX/パワーとグリップのバランス

安定に拘ったプレミアムシリーズは適所で必要な
グリップ力とパワーを引き出す構成へマイナーチェンジ!!
豚革9枚+ファイバー1枚(接着面)


Navigator Blue Impact
キュー性能を最大値で引き出す!
硬度
☆PRO SOFT
☆PRO MAX

グリップ力に拘った究極シリーズ
◉PRO SOFT/安定した柔らかさと持続性
◉PRO MAX/シャープなグリップ力と持続性

斬れに拘った究極シリーズは究極のキュー斬れを求めるお客様向けに15枚層から豚革9枚層+ファイバー1枚(接着面)へマイナーチェンジ!

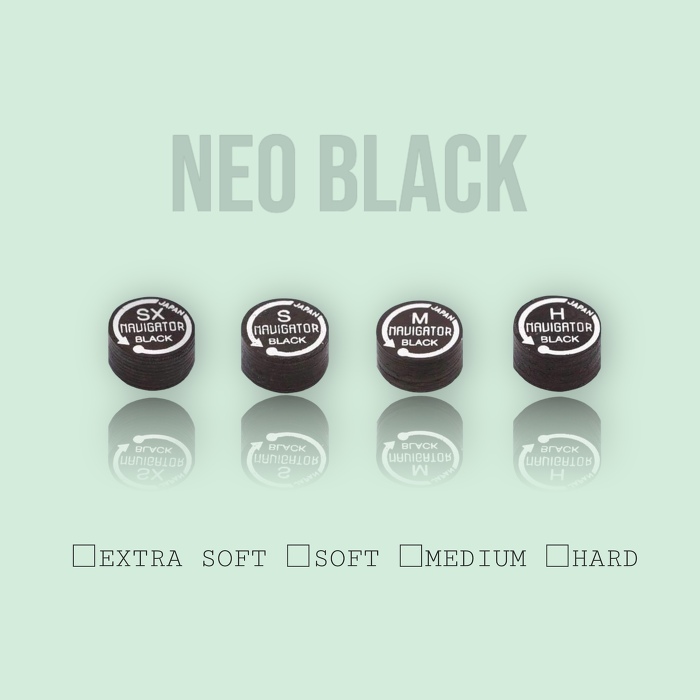

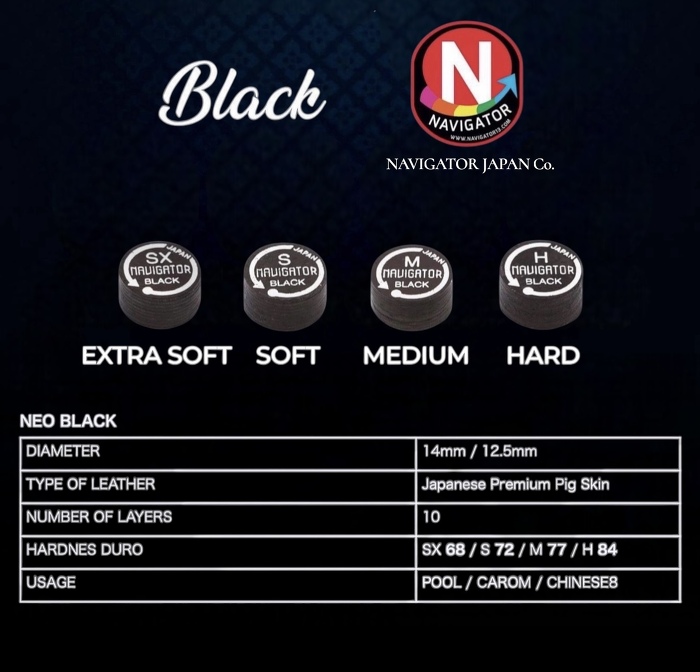

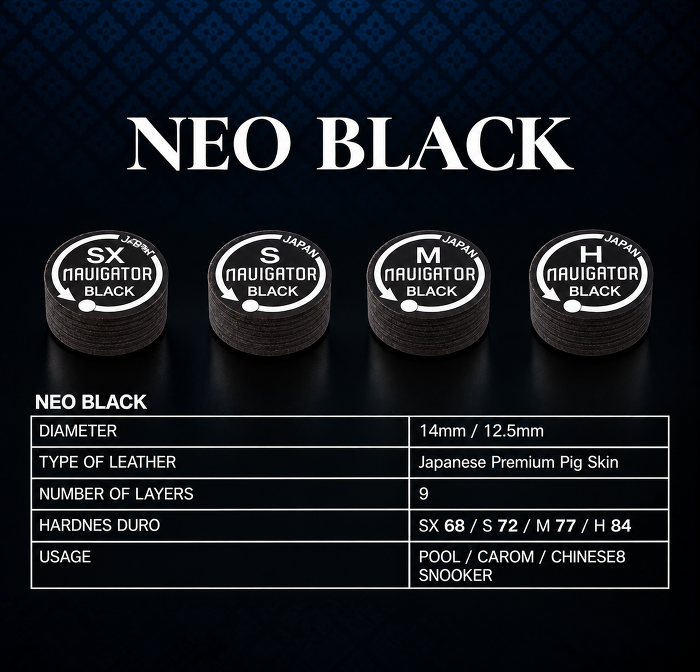

NAVIGATOR BLACK

NAVIGATOR BLACK拡大表示

Diameter 14mm
Type of leather JAPANESE PREMIUM PIG SKIN
No. of layers 10
Hardness
DURO
【SX】67 【S】71  【M】76 【H】84
Usage POOL&CAROM
《Black 14mm 国産豚革 自社染色10枚積層》
Black タイプはスタンダードタイプとして主にハイテク化されたキューを使用されてるお客様にお奨めしております。
アメリカ TONKIN Cuesやマクダモット社の標準装備TIPでキュー性能を邪魔しないキュー性能を最大限に引き出す為のTIPとして世界中で広く販売されています。
14-1現世界チャンピオン Lee Vann CortezaやJhonny Archer 使用モデルです。

CLASSIC TIPS
Navigator Black tips feature 10 layers of Japanese pigskin leather that are assembled using a proprietary adhesive.
Black tips mushroom as all other tips, and adjust themselves to the hardness of the shafts and player’s styles.
They can catch chalk appropriately, and transmit great amount of spins correctly to cue balls.

NAVIGATOR BLUE IMPACT

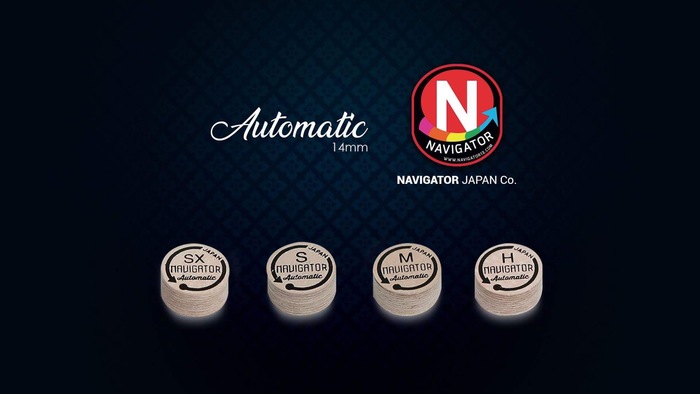

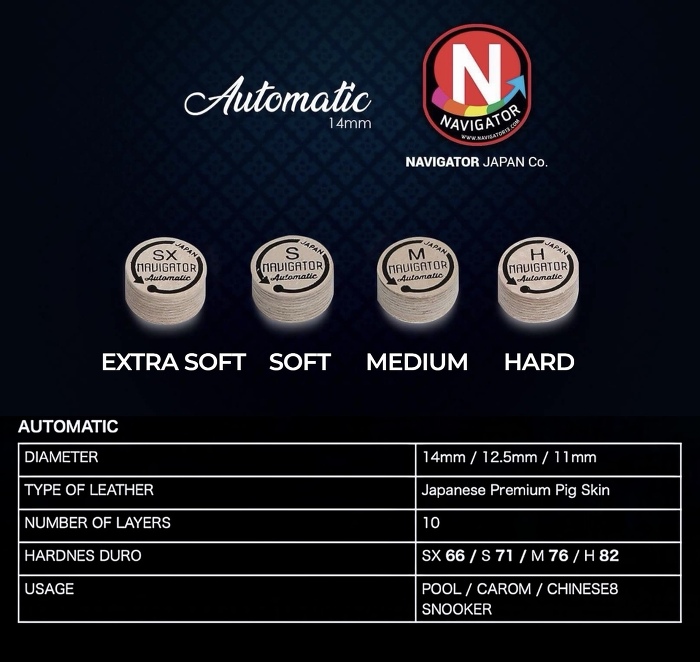

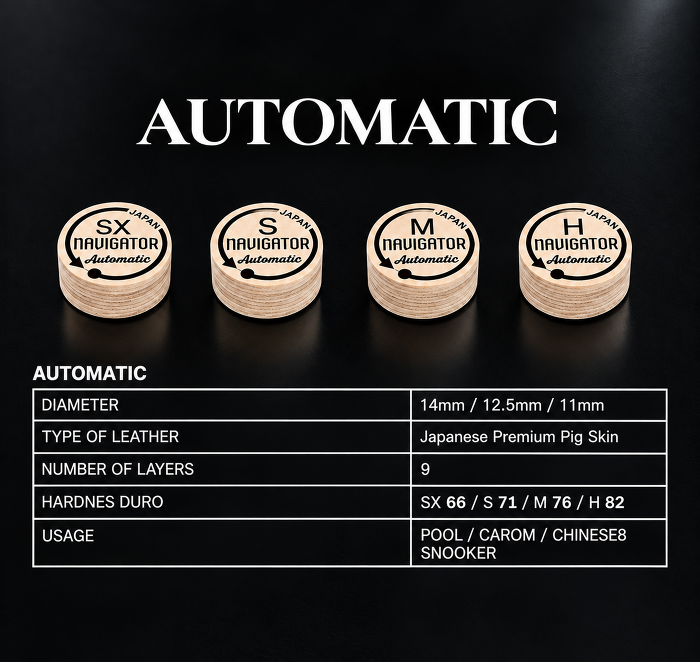

NAVIGATOR AUTOMATIC

NAVIGATOR AUTOMATIC拡大表示

Diameter 14mm
Type of leather JAPANESE PREMIUM PIG SKIN
No. of layers 10
Hardness
DURO
【SX】66 【S】71 【M】76 【H】82
Usage POOL&CAROM
《Automatic 14mm 国産豚革 自社染色10枚層》
天然ピッグスキンカラーを採用したAutomatic タイプは無着色で革に特殊な加工を施し約1ケ月間
乾燥室で寝かせた後形成してます。
革は一定の湿度を保つ場所で寝かせる事と弊社独自の加工によりきめ細やかな良質な革へと変化しハイクオリティで高性能なTIPとなります。
Automaticの名が採用された理由として、
1.硬度に関係無く変形が少ない事
2.どのシャフトにも適応し最短スピードで馴染む。
3.馴染んだ後の硬度は長期間持続する。
4.チョーク乗りが良く一体感がありマイルドなタッチとサウンドを奏でます。
5.変形が少ない事によりイージーメンテナンスを実現。

FREELY
Navigator Automatic tips feature Japanese pigskin leather died with our original clear liquid.
Each tip goes through a month-long manufacturing process.
The leather skin is laid down in a unique low humidity room constantly.
This process seals in the ideal qualities of the leather. They can keep softness & less deformation.
The players can catch good feeling using this tips.
The reason why we call them as ‘Automatic’
1. Regardless of their hardness, there are minimal deformations.
2. They adapt to any shafts and speeds you desire.
3.The consistency of the hardness will last for a long time.
4.When applying chalk, players can catch good feeling , and play with soft touch and sound.
5. You need minimum maintenance for them, but you can keep them less deformation.

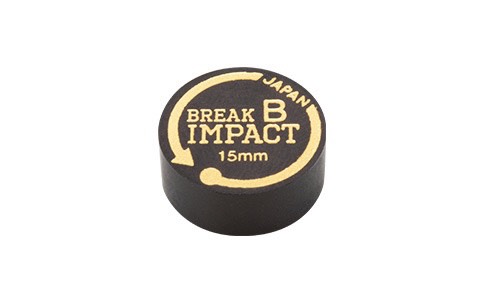

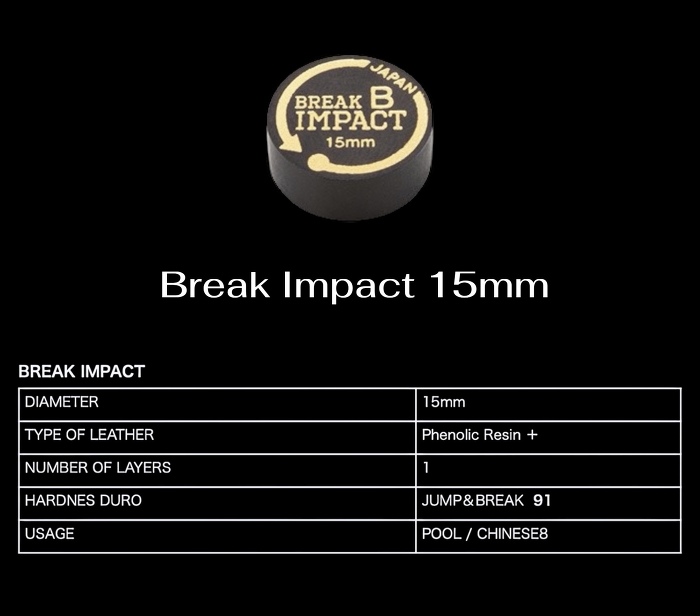

NAVIGATOR BREAK IMPACT

BREAK IMPACT拡大表示

Diameter 15mm
Type of leather PHENOLIC
Usage JUMP&BREAK
《Break Impact 15mm フェノリック&革ハイブリッド単層タイプ》
チョーク乗りが抜群に良く新素材ブレイクTIPとして多くのプレイヤーに使用して頂いています。

JUMP&BREAK
Many players use phenolic break and jump tips, because of power they can generate during the break shot.
This power can sometimes be hard to control, so cue ball control is not perfect.
That is the reason why some Pro Players use hard solid leather tips, with idea to make better cue control.
But these tips are not as powerful and not so efficient, when it comes to jumping.
In Navigator we have developed unique phenolic jump and break cue that delivers great power, but in the same time, keeps tremendous cue ball control.
The tips are so good that you can even play with them without miscuing.
And you can also use them in games that demand hard tips, like Russian Pyramid etc.





各TIPの取付方法&注意点

先ずはじめに
数あるTIPの中から弊社のTIPを選んで頂きました事に深く御礼申し上げます。

装着に於いては以下弊社製品取付方法又注意点をご参照下さい。
取付時に使用する接着剤はアロンアルファゼリータイプ又はスリーボンドゼリータイプを推奨しております。
一度開封した接着剤は強度が落ちます。
冷蔵庫保管によりある程度強度を保てるというメーカーのアドバイス通り冷蔵庫で保管して下さい。


[Glue Side レザータイプ]
接着面が革の場合はある程度細かい番手800番〜1000番のサンドペーパーで水平を確認しながら削って下さい。
削りカスは濡れ布巾などで良く拭き取ると接着強度が増し接着剤と先角の化学変化も防ぐ事が出来ます。又拭き取りの後は良く乾燥させて下さい。
取り付けは専門業者又はショップなど旋盤での取付をオススメしています。

[Glue Side ファイバー座タイプ]
New シリーズのTIPにはファイバー製の座がついております。
接着面は200〜400番のサンドペーパーで優しく削って下さい。
革製の座に比べると比較的水平が取り易いです。
革製同様に削りカスは濡れ布巾などで良く拭き取って接着して下さい。
取り付けは専門業者又はショップなど旋盤での取付をオススメしています。

[ブレイクTIP]
弊社ジャンプ&ブレイクは特別に配合をされたエボナイト材を使用し製造されております。
接着面は200〜400番のサンドペーパーで優しく削って下さい。
衝撃が1番強いブレイクやジャンプ時で使用するので先角やTIP接着面のハイレベルな水平が必要です。
水平が出ていなかったり先角にクラックが入っている場合TIP自体が破損する可能性があります。
必ず専門業者又はショップで旋盤にて取り付けて下さい。
